Home > VEVOR Pneumatic Crimping Tool AM-10 Pneumatic Air Powered Wire Terminal Crimping Machine Crimping Up to 16mm2 Pneumatic Crimper (AM-10 Crimper)

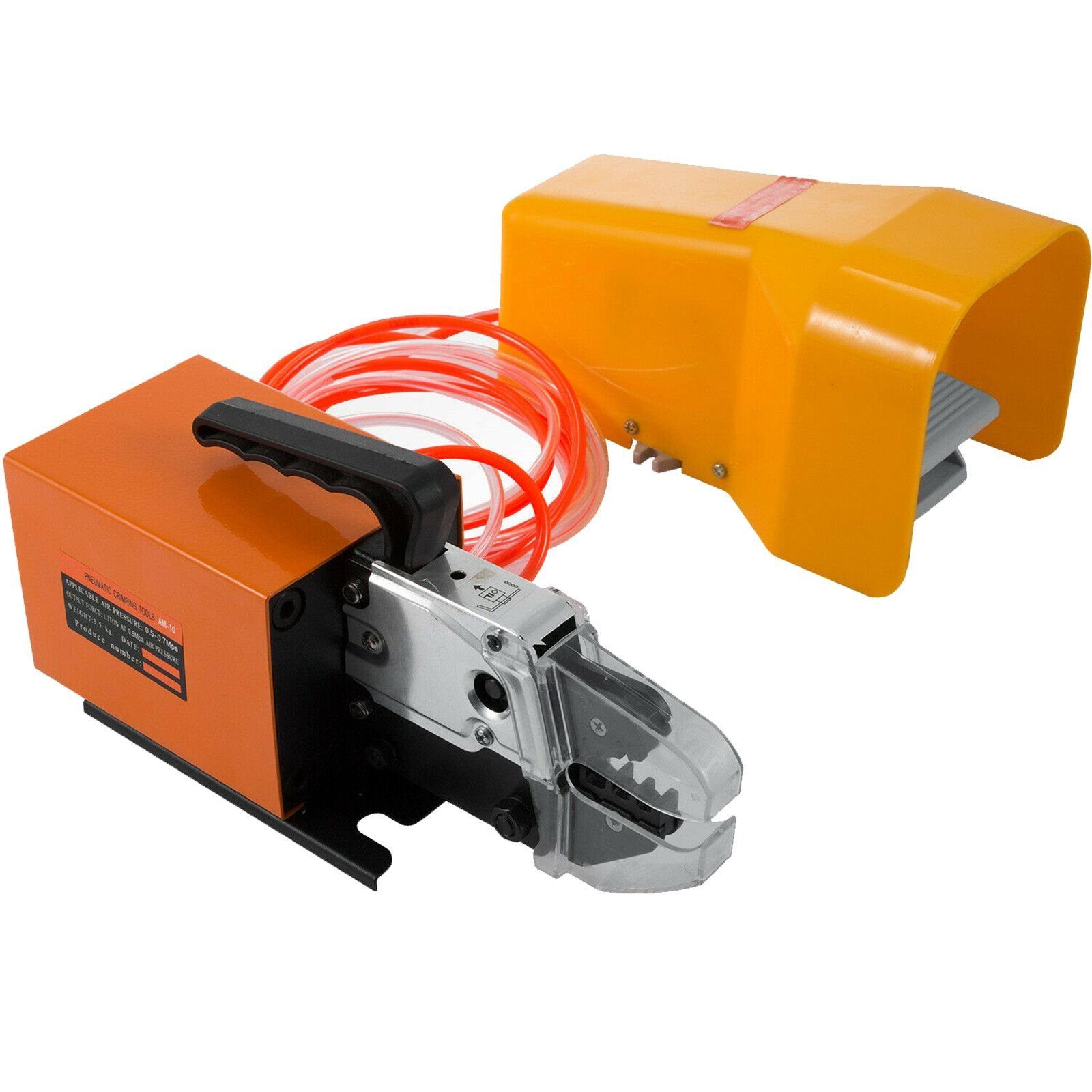

VEVOR Pneumatic Crimping Tool AM-10 Pneumatic Air Powered Wire Terminal Crimping Machine Crimping Up to 16mm2 Pneumatic Crimper (AM-10 Crimper)

VEVOR Pneumatic Crimping Tool AM-10 Pneumatic Air Powered Wire Terminal Crimping Machine Crimping Up to 16mm2 Pneumatic Crimper (AM-10 Crimper) VEVOR Pneumatic Crimping Tool AM-10 Pneumatic Air Powered Wire Terminal Crimping Machine Crimping Up to 16mm2 Pneumatic Crimper (AM-10 Crimper) VEVOR Pneumatic Crimping Tool AM-10 Pneumatic Air Powered Wire Terminal Crimping Machine Crimping Up to 16mm2 Pneumatic Crimper (AM-10 Crimper)
$169.81
D0102HPC45P
Add to Cart
Highlights:

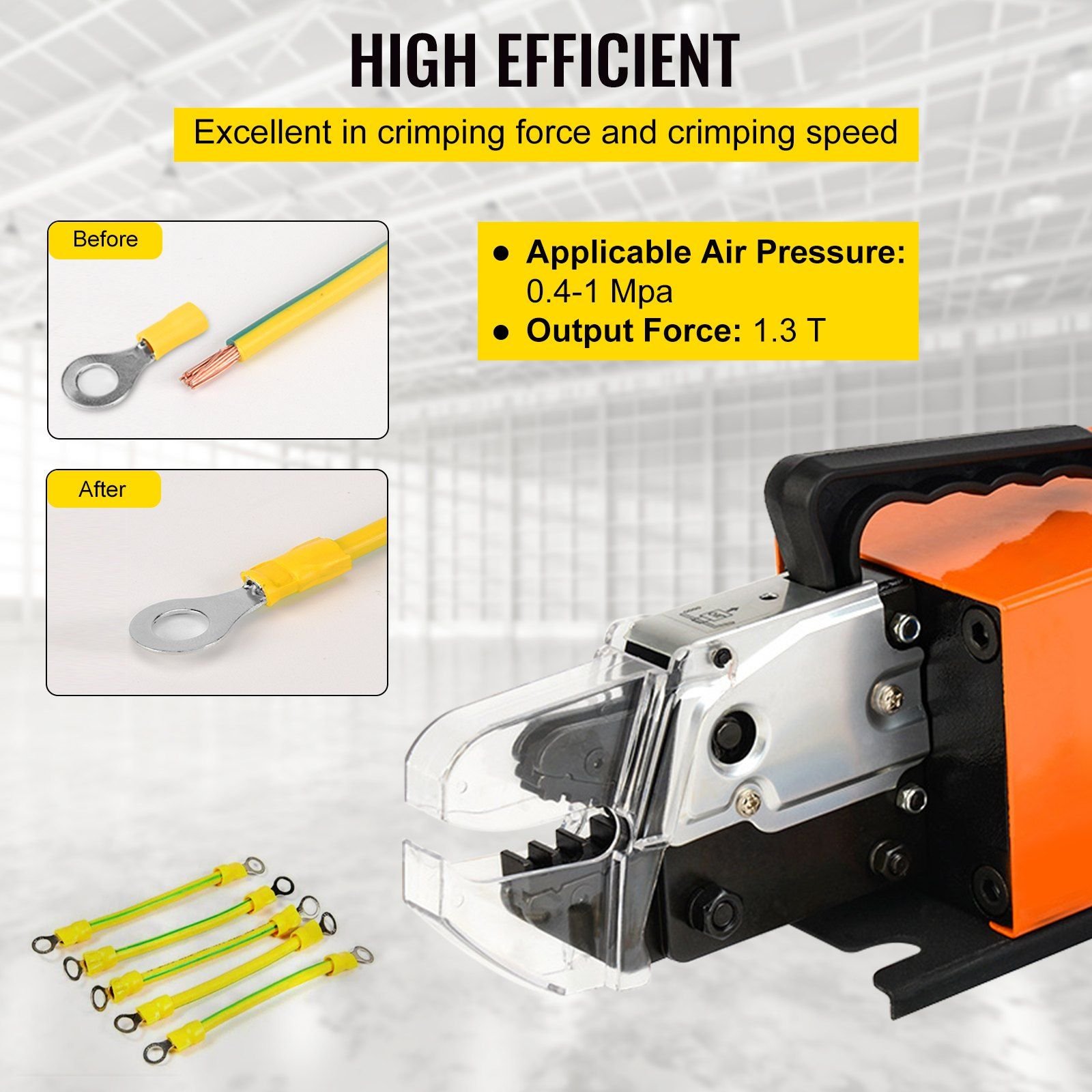

1.High Efficient: The machine is driven by a dual-action standard cylinder, which has advantages of high efficiency and quality in crimping force and speed. It has a precision die jaws, capable of precision crimping work to meet the needs of modern industry.
2.Premium Construction: The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.
3.Humanized Design: Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes. (This product only contains one die)
4.Simple To Operate: After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain. NOTE: You need to prepare an 8mm (5/16 inch) air hose yourself to connect the air source to the product's foot pedal.

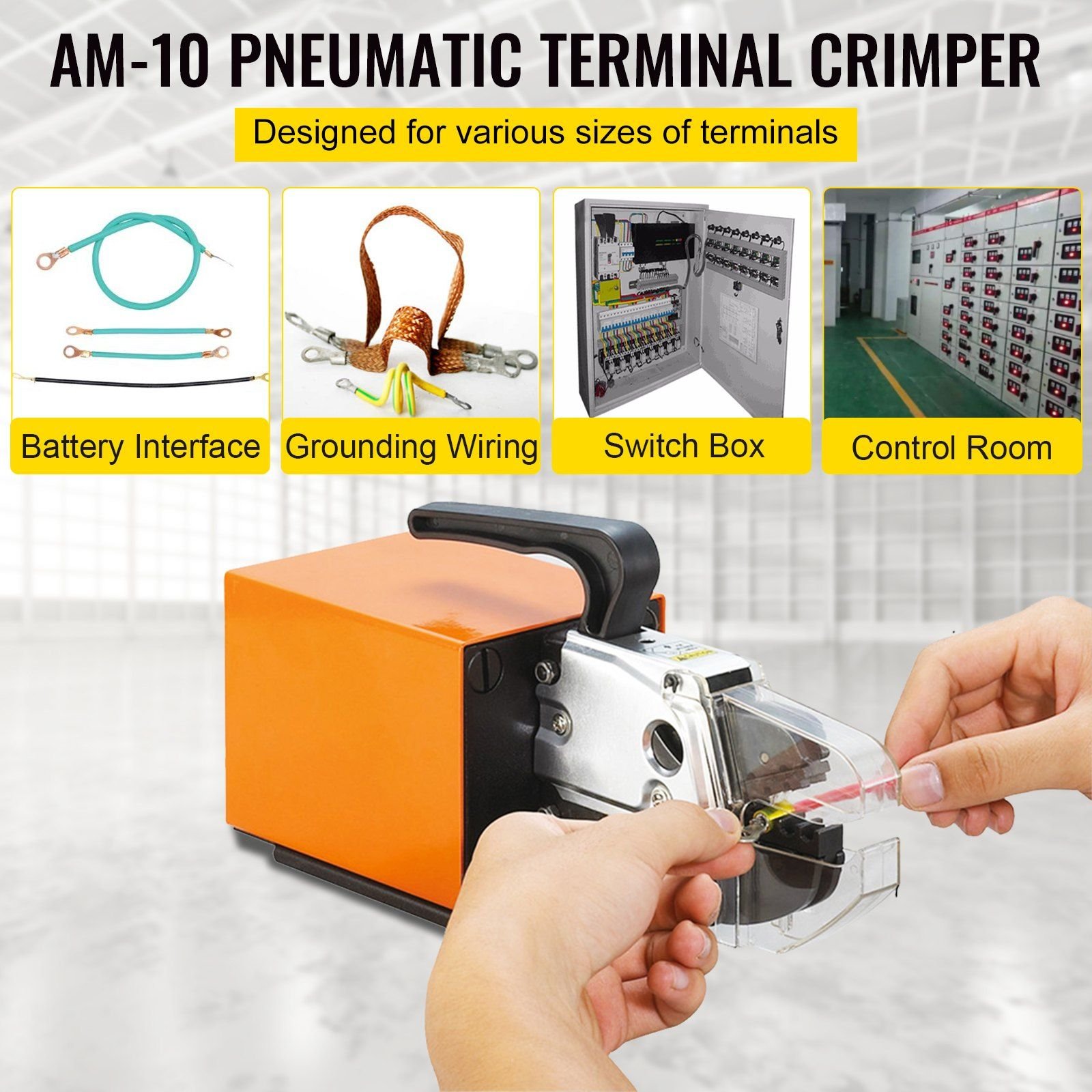

5.Wide Applications: The pneumatic crimping tool is suitable for a variety of terminals, crimping insulated and non-insulated cable end sleeves. To replace the mode jaws, the jaws of the protective cover and remove the screw with a tool, to replace the jawline.

Details:
1.3 T Pneumatic Crimping Machine
A pneumatic crimping machine is driven by a dual-action standard cylinder, which has advantages of high efficiency and quality in crimping force and speed. It is suitable for Non-insulated terminals ≤ 16 mm², Rre-insulated terminals ≤ 6 mm², Tube terminals ≤ 35 mm². The die sets can be interchangeable with our manual crimping tools
  • Durable Material
  • High Efficient
  • Comfortable Operation
  • Easy to Use
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Dual-acting Cylinder
Compared with single-acting cylinders, double-acting cylinders are more economical, have fast crimping speed, wide application range, and long service life.
Solid Steel Material
Tool steel material, surface painting process, having superior mechanical properties. High hardness, wear resistance, long time operation.
High-precision Jaw
The crimping machine has high-precision jaws, crimping accurately, and will not damage the terminals. You can also replace the jaws to press out different terminals.
Labor-saving Design
Foot-operated air valve design makes crimping effortless. The air valve can also control the crimping pressure and accurately crimp the terminals.
Simple Operation
The clamps are used in pairs, follow the instructions to connect the crimping machine correctly, which is easy to use.
Widely Use
Pneumatic crimping machine for a variety of terminal press-bonding, the die can be pressed with our manual crimping tool used interchangeably.
Specifications
  • Model: AM-10
  • Material: Tool steel
  • Weight: 3.5 kg (7.7 lbs)
  • Output Force: 1.3 T
  • Air Pressure: 0.5-0.7 Mpa
  • Max. Operating Pressure: 1.0 Mpa
  • Non-insulated terminals ≤ 16 mm²
  • Rre-insulated terminals ≤ 6 mm²
  • Tube terminals ≤ 35 mm²
  • External Dimension: 266 x 142 x 117 mm ( 9 x 5.6 x 4.6 inch)
Package Content
  • 1 x AM-10 Pneumatic Crimping Machine
  • 1 x Die Set
  • 1 x Foot Air Valve
  • 2 x Air Pipes
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
1.3 T Pneumatic Crimping Machine
A pneumatic crimping machine is driven by a dual-action standard cylinder, which has advantages of high efficiency and quality in crimping force and speed. It is suitable for Non-insulated terminals ≤ 16 mm², Rre-insulated terminals ≤ 6 mm², Tube terminals ≤ 35 mm². The die sets can be interchangeable with our manual crimping tools
  • Durable Material
  • High Efficient
  • Comfortable Operation
  • Easy to Use
Dual-acting Cylinder
Compared with single-acting cylinders, double-acting cylinders are more economical, have fast crimping speed, wide application range, and long service life.
Solid Steel Material
Tool steel material, surface painting process, having superior mechanical properties. High hardness, wear resistance, long time operation.
High-precision Jaw
The crimping machine has high-precision jaws, crimping accurately, and will not damage the terminals. You can also replace the jaws to press out different terminals.
Labor-saving Design
Foot-operated air valve design makes crimping effortless. The air valve can also control the crimping pressure and accurately crimp the terminals.
Simple Operation
The clamps are used in pairs, follow the instructions to connect the crimping machine correctly, which is easy to use.
Widely Use
Pneumatic crimping machine for a variety of terminal press-bonding, the die can be pressed with our manual crimping tool used interchangeably.
Package Content
  • 1 x AM-10 Pneumatic Crimping Machine
  • 1 x Die Set
  • 1 x Foot Air Valve
  • 2 x Air Pipes
Specifications
  • Model: AM-10
  • Material: Tool steel
  • Weight: 3.5 kg (7.7 lbs)
  • Output Force: 1.3 T
  • Air Pressure: 0.5-0.7 Mpa
  • Max. Operating Pressure: 1.0 Mpa
  • Non-insulated terminals ≤ 16 mm²
  • Rre-insulated terminals ≤ 6 mm²
  • Tube terminals ≤ 35 mm²
  • External Dimension: 266 x 142 x 117 mm ( 9 x 5.6 x 4.6 inch)
